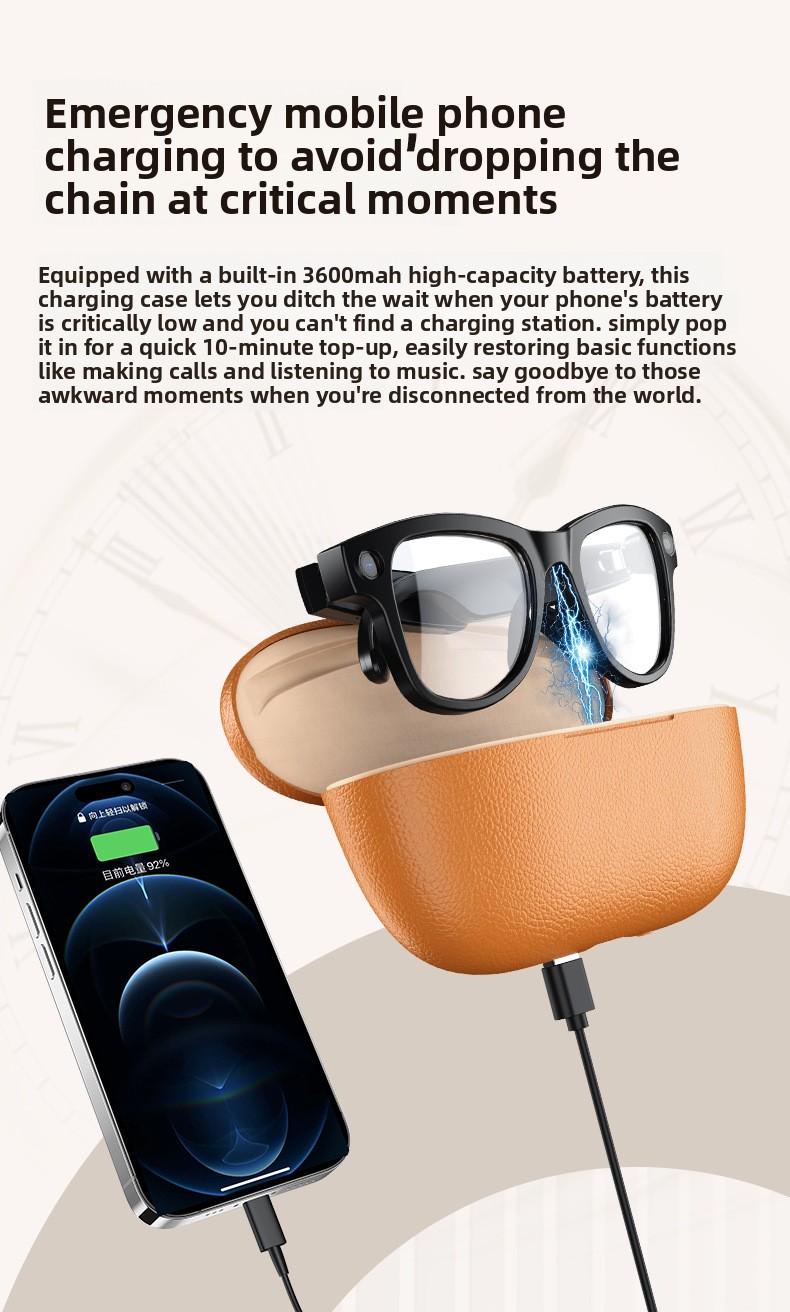

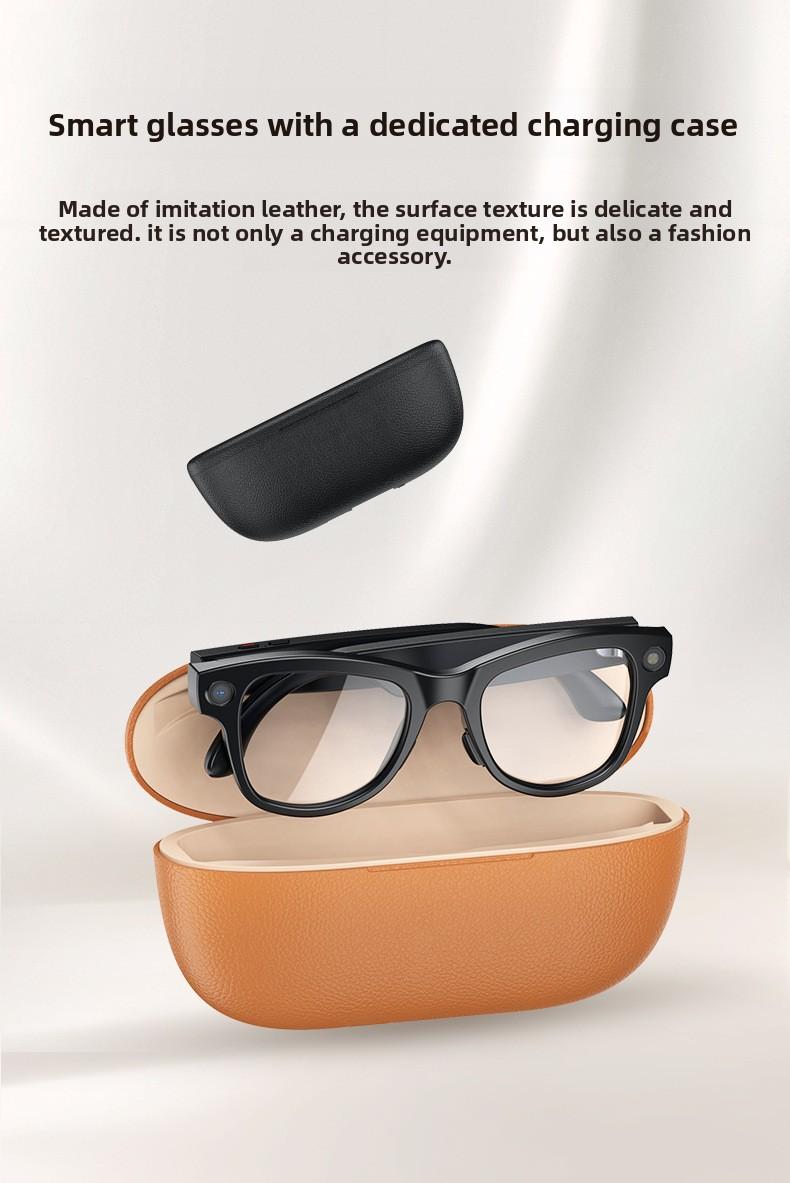

Intelligent AI glasses black technology high definition 800w pixel charging compartment photo recognition translation glasses

Single machine: 49g

Full set weight: 275g

Packing Quantity: 50PCS

Outer box size: 420X415X412mm

Packing weight: 13.88kg

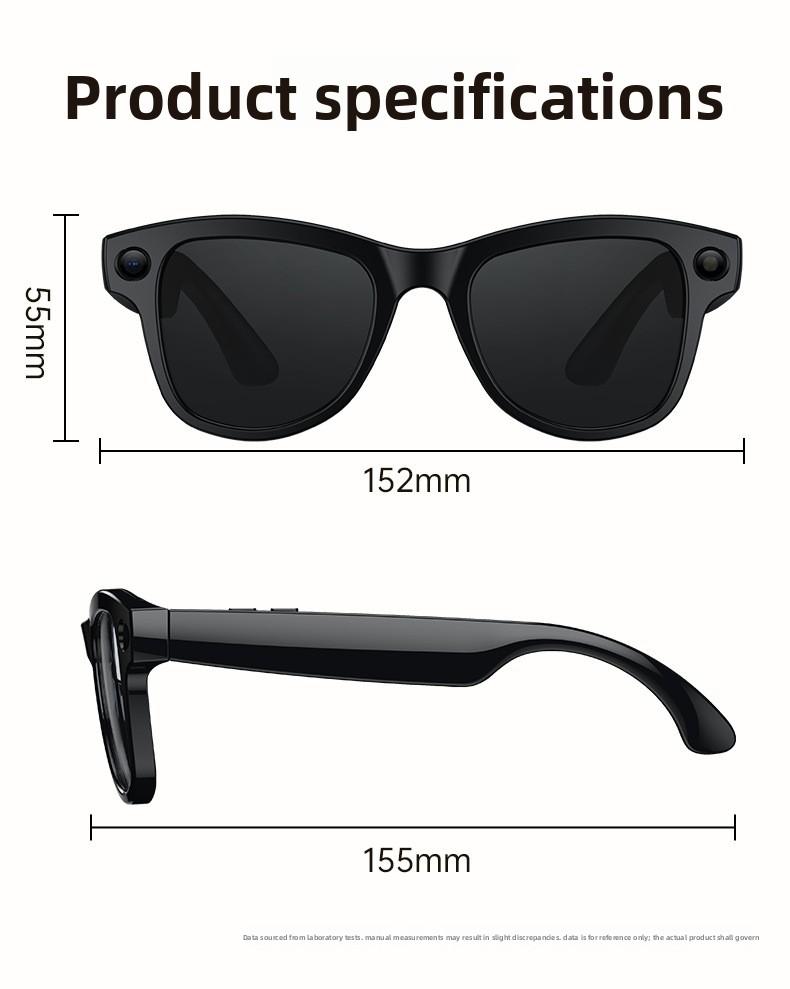

Glasses size Length, width and height 162 * 141 * 54mm

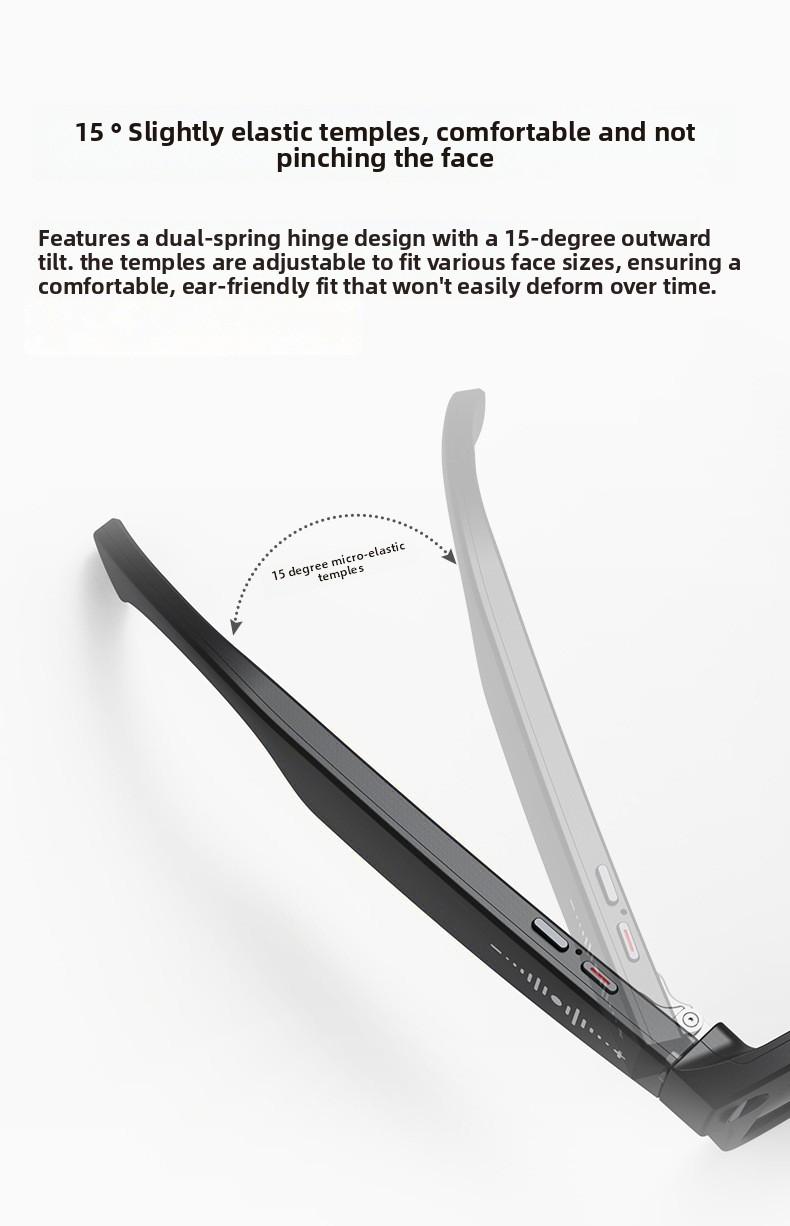

Temple: PC + ABS (oil injection light)

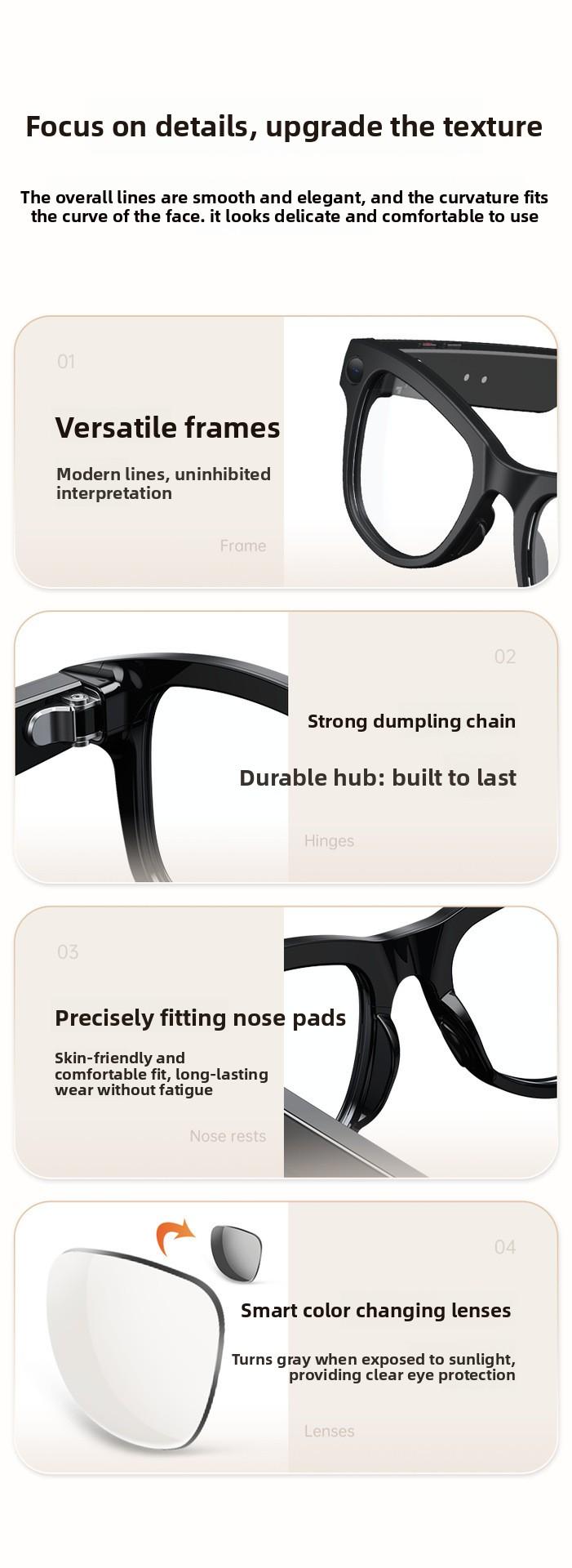

Frame: PC + ABS (oil injection light)

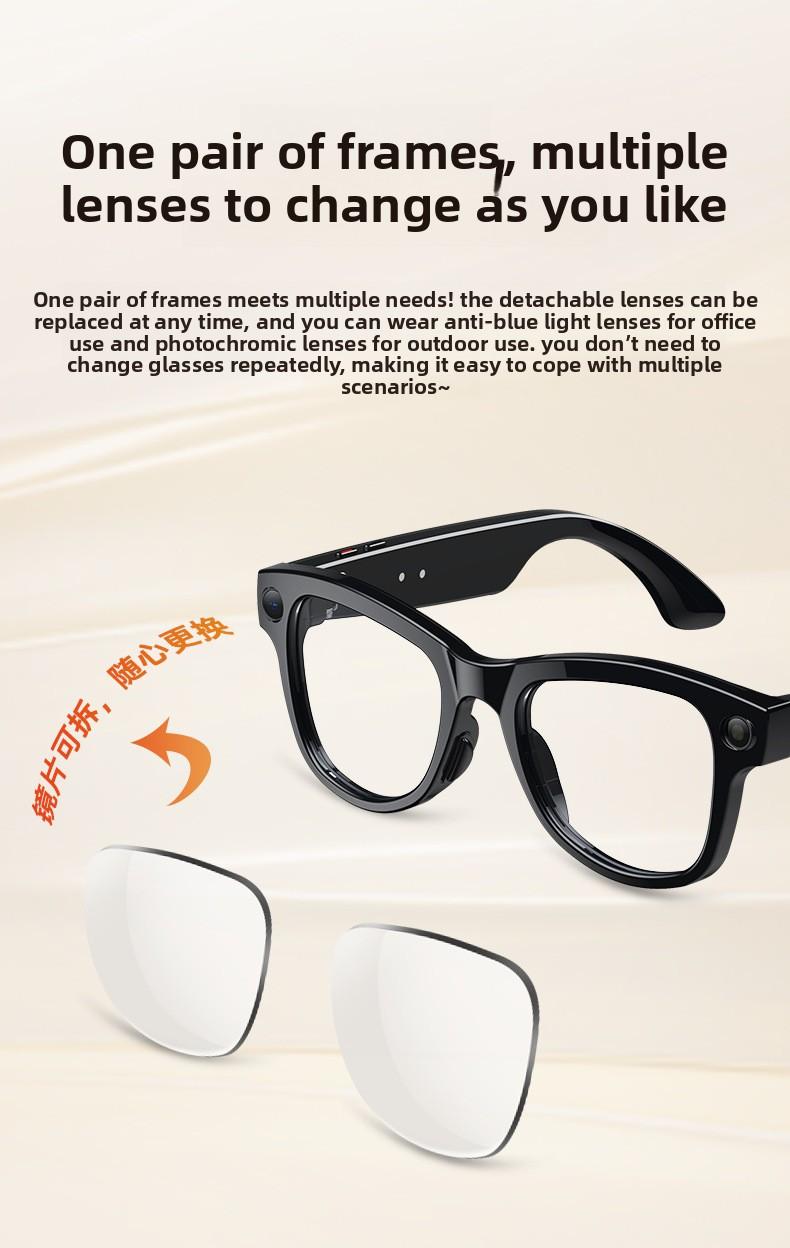

Lens: PC transparent coating anti-blue light

Power on: Press and hold the red button for five seconds

Open the APP: Connect the device, skip the tutorial

Click to view the device pairing status and battery status

Button 1

Short press once to take a photo

Short press the red button twice to start recording, and short press the red button again to end the recording.

When the phone enters, short press once to answer the call, and long press for three seconds to reject the call.

Button 2

Short press once to evoke the AI voice assistant (keep the APP displayed on the front end)

Short press twice to start the recording, and then short press once to end this recording.

Touch area

Double-click the right temple trackpad to pause the music, touch it three times in a row or long press to switch the music

Click Album at the bottom of the APP, click Import, and after the transfer is successful, you can choose to save photos, videos and recordings.

AI voice assistant

Wake up the assistant: "Hello, Little Orange", after hearing the "drip" sound, ask the question (What's the weather like today?, What's in front of me?, What do you mean in front of me?)

M01 main chip: JL7018F stereo ENC noise reduction

Auxiliary chip: Allwinner V821

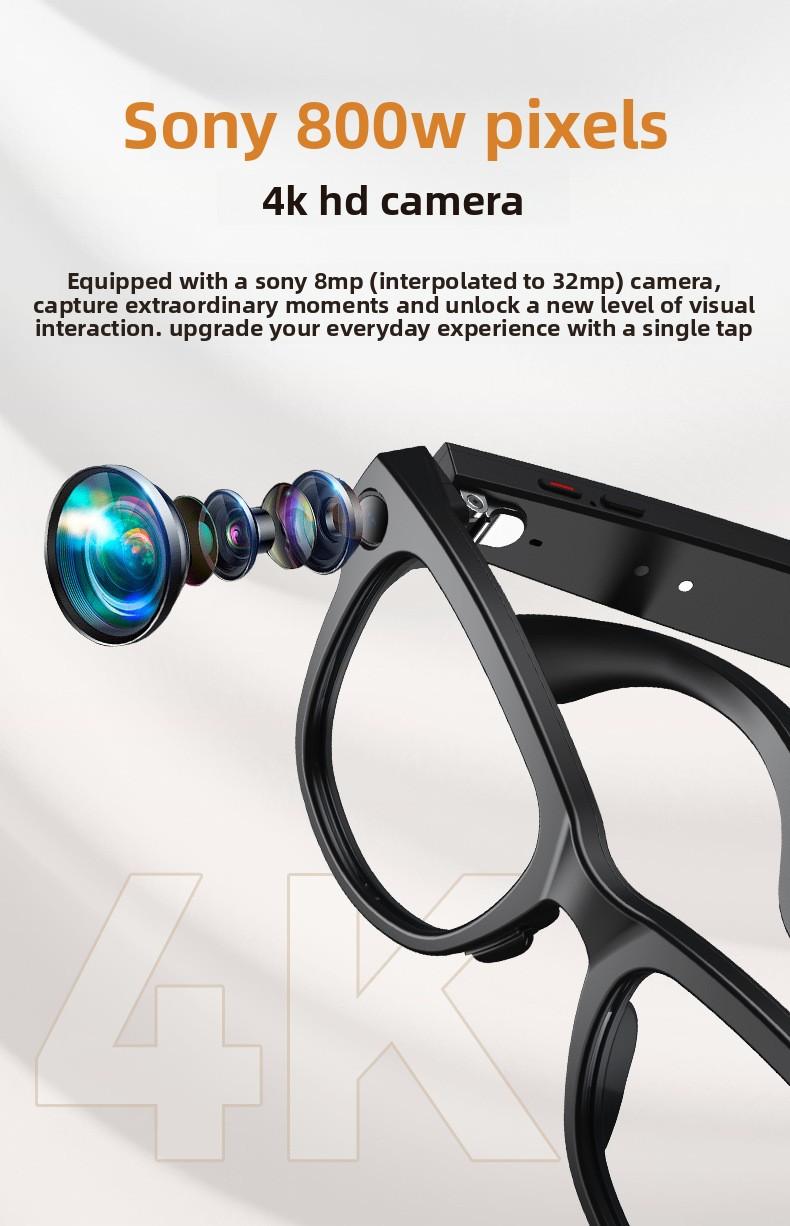

Camera chip: gc05A2,800W

WiFi: 5GHz

Bluetooth receiving distance:: ≥ 10m & Nbsp; & nbsp ;

Operating Frequency: 2.402GHz~ 2.480GHz

Transmit power: CLASS2, MAX4dBm

Signal to noise ratio: -89dBV Distortion: < 1%

Operating frequency: 20HZ - 20K HZ

Speaker specification: 1609 H3.0 Speaker impedance: 16 ± 1.5% Ω

Speaker power: 0.5W short-term maximum power: 0.8W & nbsp ; & Nbsp; & nbsp ; & Charging input voltage: DC5 ± 0.25V

Battery specification: 3.8V/280mAh

Working voltage: 3.8V (3.3-4)

Charging time: ≤ 1.5H Quiescent current: ≤ 5uA

Mist Sensitivity: -42 ± 3DB Low Voltage Tip: 3.0V

Continuous music playback time: Approximately 4 hours (80% volume)

Working current: ≤ 30mA (the higher the volume, the greater the current)

Camera Current: ≤ 210mA

Supported functions: Keyword Spotting, music playback, music control, making and receiving calls, shooting, accessing Chat GPT large model, looking at pictures in kind, real-time translation, etc., shooting anti-shake, wifi transmission, dual-mic noise reduction, single-point touch, wearing detection, etc.

Supported languages: Traditional Chinese - Taiwan, Traditional Chinese - Hong Kong, Simplified Chinese, Vietse, Turkish, Thai, Slovak, Russian, Romanian, Portuguese, Polish, Dutch, Korean, Japanese, Italian, Indonesian, Hungarian, Hindi, French, Spanish, Greek, German, Czech, Arabic, English, Urdu

M01 main chip: JL7018F stereo ENC noise reduction

Auxiliary chip: Allwinner V821

Camera chip: gc05A2,800W

WiFi: 5GHz

Bluetooth receiving distance:: ≥ 10m & Nbsp; Operating Frequency: 2.402GHz~ 2.480GHz

Transmit power: CLASS2, MAX4dBm

Signal to noise ratio: -89dBV Distortion: < 1%

Operating frequency: 20HZ - 20K HZ

Speaker specification: 1609 H3.0 Speaker impedance: 16 ± 1.5% Ω

Speaker power: 0.5W short-term maximum power: 0.8W & nbsp ; & Nbsp; & nbsp ; charging Input voltage: DC5 ± 0.25V

Battery specification: 3.8V/280mAh

Working voltage: 3.8V (3.3-4)

Charging time: ≤ 2H Quiescent current: ≤ 5uA

Mist Sensitivity: -42 ± 3DB Low Voltage Tip: 3.0V

Continuous music playback time: Approximately 4 hours (80% volume)

Working current: ≤ 30mA (the higher the volume, the greater the current)

Camera Current: ≤ 210mA

Supported functions: Keyword Spotting, music playback, music control, making and receiving calls, shooting, accessing Chat GPT large model, looking at pictures in kind, real-time translation, etc., shooting anti-shake, wifi transmission, dual-mic noise reduction, single-point touch, wearing detection, etc.
